Description
This NYMAS NymaPRO back-to-wall Doc M toilet pack (DM800KC) complies with Part M of the Building Regulations and can be installed for either left or right-handed applications. Available in Dark Blue, Dark Grey, Grey or White (see below), this Doc M pack contains the following:
Doc M Pack Contents
- 5x 600mm Grab rails with concealed fixings
- 1x 800mm Lift and lock hinged support rail
- 1x Backrest rail with PU pad
- 1x Back-to-wall WC pan
- 1x Spacer assembly for BTW pan
- 1x WRAS-approved concealed cistern
- 1x Ring-only toilet seat with adjustable buffers and stainless steel hinge
- 1x Two tap-hole basin and fittings including a tap-hole stopper for either left-hand or right-hand setting
- 1x Sequential basin mixer tap
- 1x Spatula cistern lever

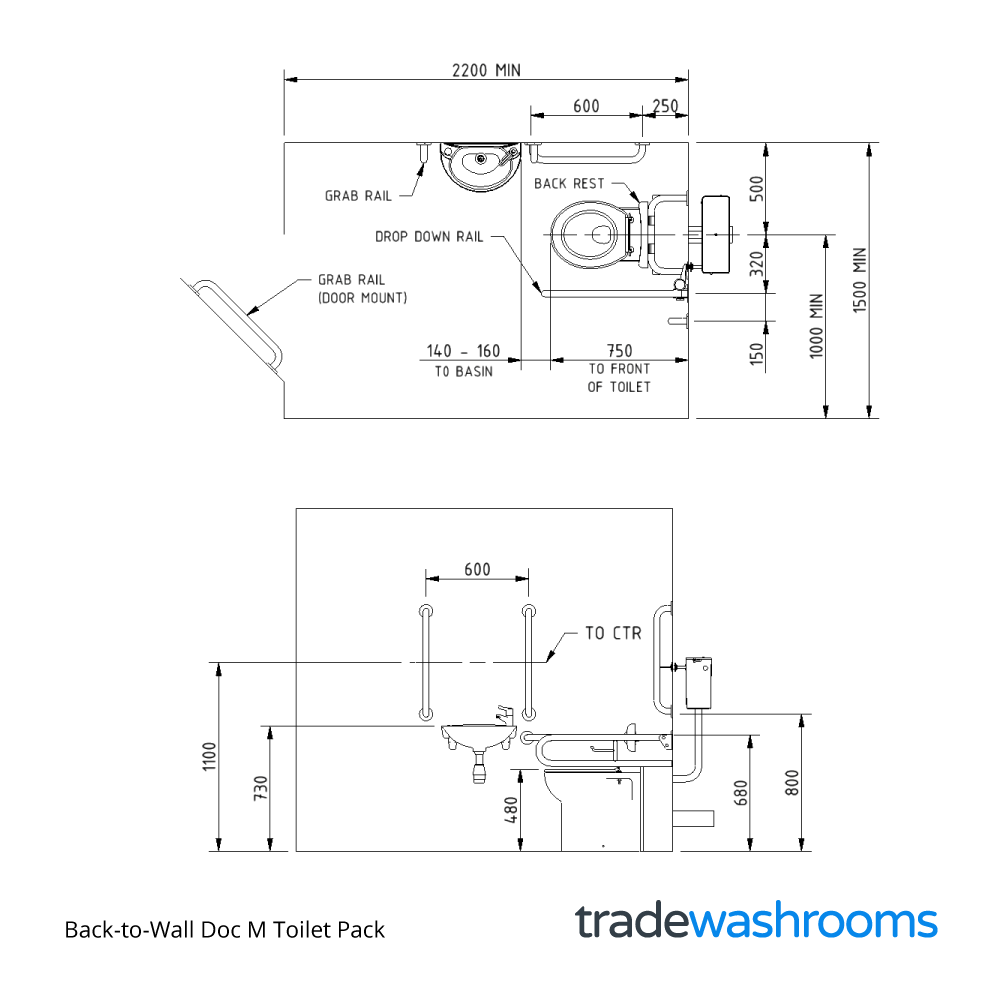

Back to Wall Doc M Toilet Layout
Grab Rail RAL Colours

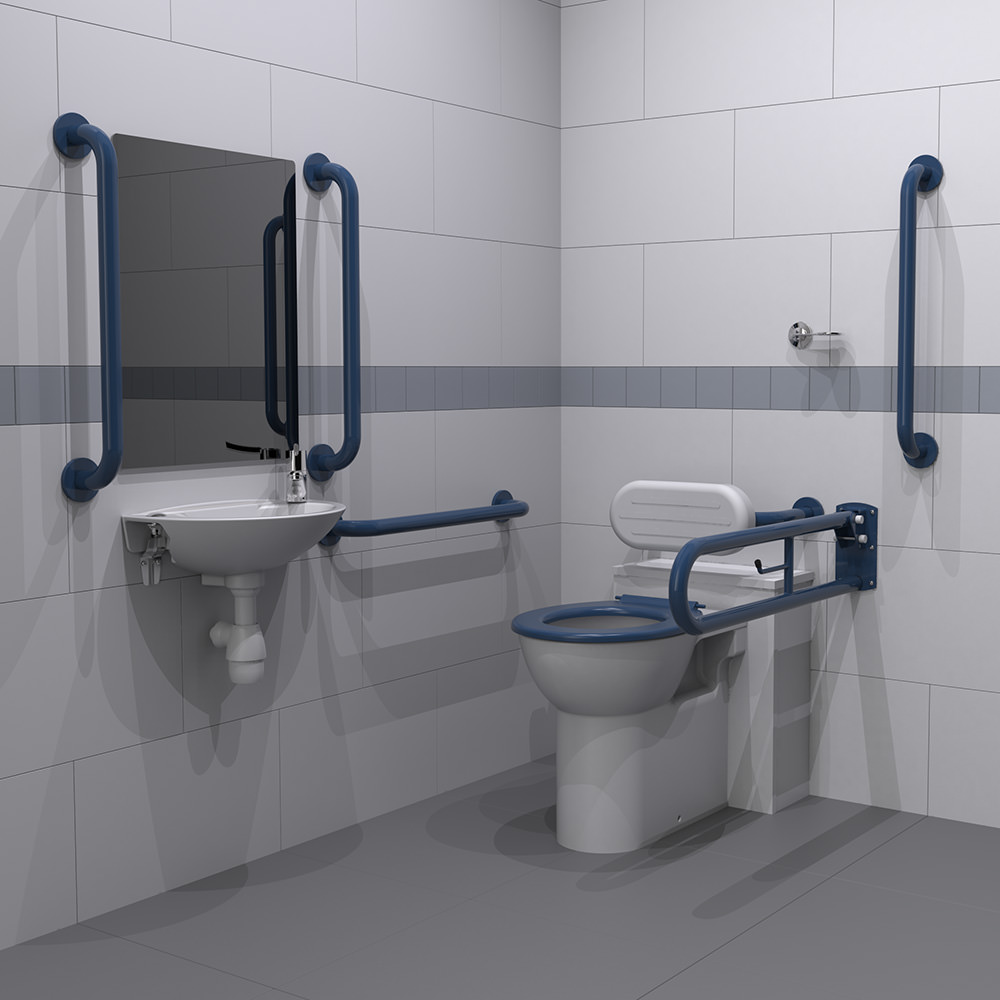

Dark Blue – DM800KCDB
Dark Grey – DM800KCDG
Grey – DM800KCGY

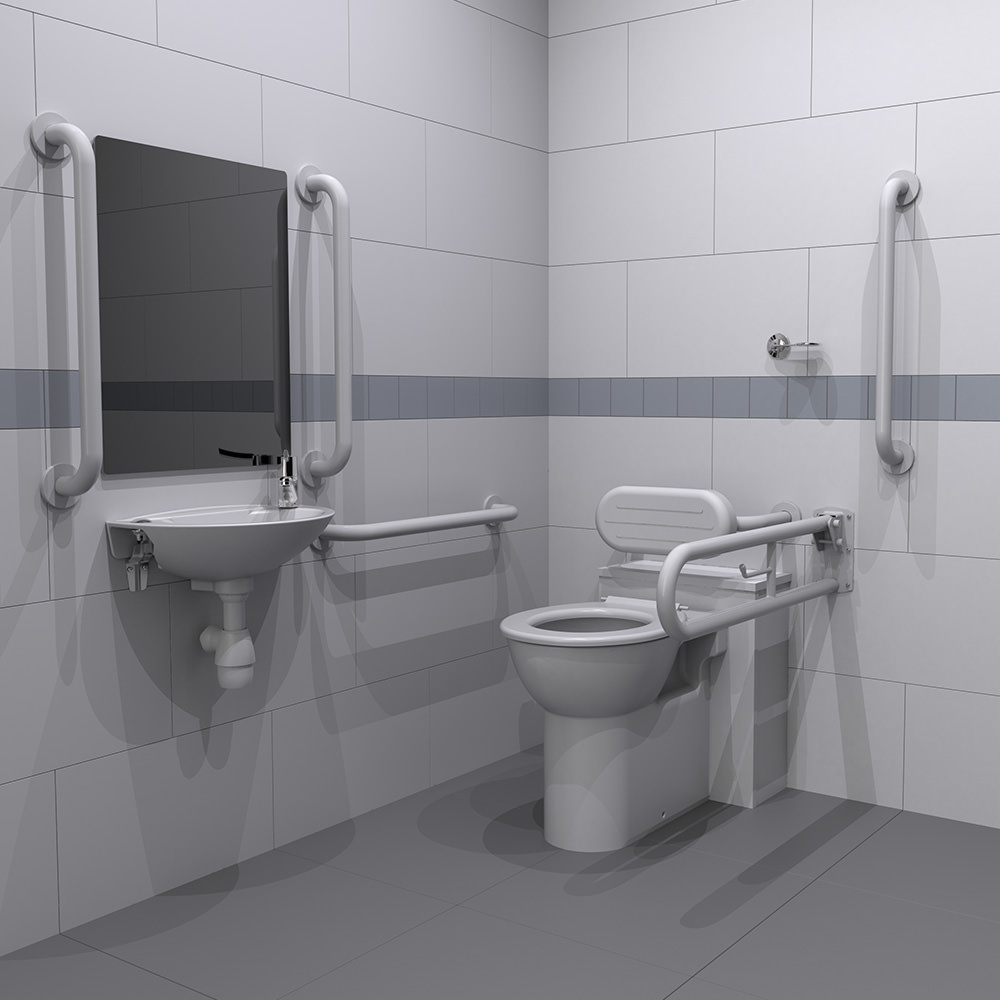

White – DM800KCWH
Polished – DM800KCSSP

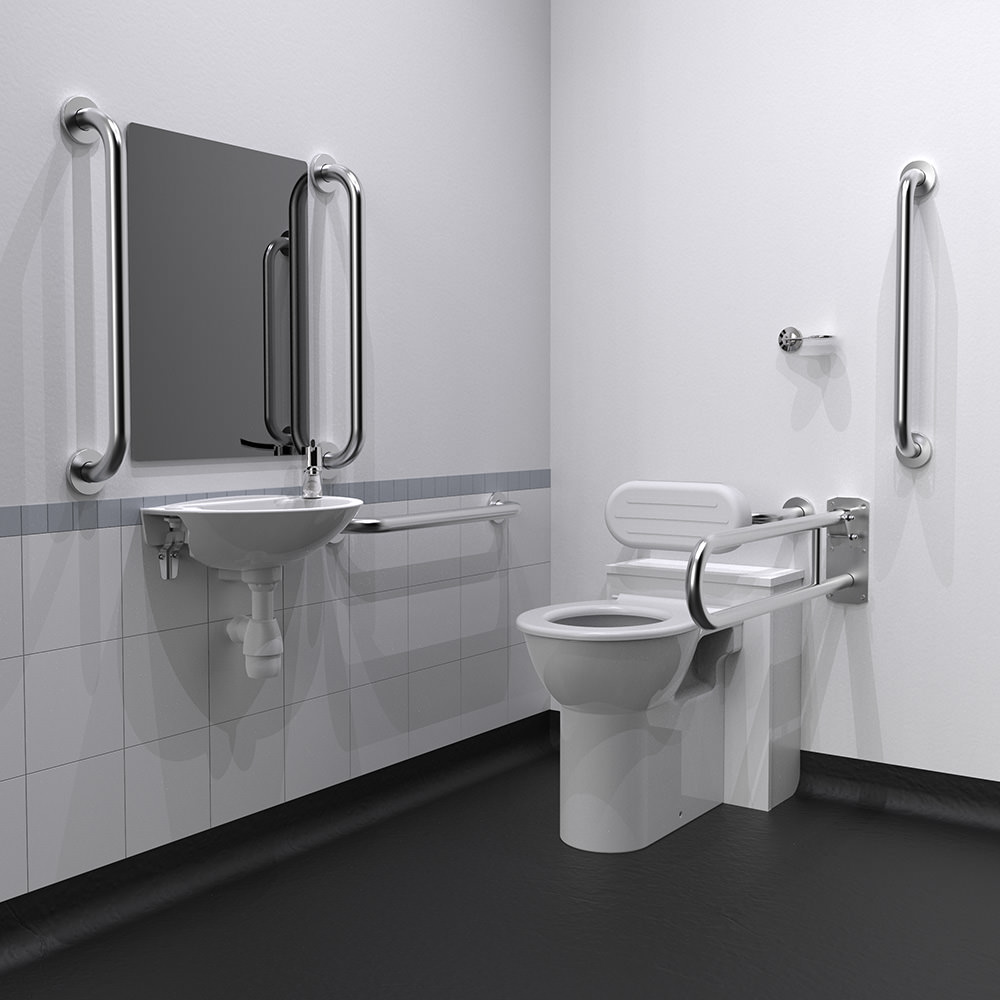

Satin – DM800KCSSS
For Building Regulations visit the Approved Document M – Free Online Version provided by SpecifiedBy, including Section 5: Sanitary Accommodation In Buildings Other Than Dwellings.
