Intra Concealed Cistern - 10005023
Junior Back-to-Wall Toilet with Blue IPS Panels
Intra Concealed Cistern - 10005023
Intra Concealed Cistern - Image 4
Intra Concealed Cistern - Image 5
Unified Water Label - 100050
Why choose Siamp?
Siamp

Intra Concealed Cistern

A dual-flush concealed cistern designed for use with a back-to-wall toilet, to be installed behind IPS panels.

This concealed cistern is insulated to prevent condensation build-up and includes WRAS Approved inlet and flush valves.

Available with either a Bottom or Side inlet (can be installed left or right-handed) and supplied with a height and depth adjustable flush pipe.

  In Stock
  Delivered within 1 – 2 working days – Details
  £9.50 delivery on orders under £100 ex VAT
  10-year manufacturer warranty

Product Code: 100050

£50.00 ex VAT
£60.00 inc VAT

Customers also bought

  • Comfort Height (450mm) Back to Wall Pan

    Comfort Height Back to Wall Pan - DOCMBWPA
    Price range: £105.00 through £160.00 ex VAT
    Select options for “Comfort Height (450mm) Back to Wall Pan” This product has multiple variants. The options may be chosen on the product page
    Compare

  • Rimless 300mm Infant Toilet Pan

    Rimless Infant Toilet Pan - SC30BTWRIM
    Price range: £120.00 through £160.00 ex VAT
    Select options for “Rimless 300mm Infant Toilet Pan” This product has multiple variants. The options may be chosen on the product page
    Compare

  • Rimless Back to Wall Pan

    Rimless Back to Wall Pan - RIM50BTWPA
    Price range: £185.00 through £240.00 ex VAT
    Select options for “Rimless Back to Wall Pan” This product has multiple variants. The options may be chosen on the product page
    Compare

  • Back to Wall Toilet Pan

    Back to Wall Toilet (BTW) Pan - ASWHBWPA
    £85.00 ex VAT
    Add to basket: “Back to Wall Toilet Pan”
    Compare

  • Rimless 355mm Junior Toilet Pan

    Rimless Junior Toilet Pan - SC35BTWRIM
    Price range: £130.00 through £195.00 ex VAT
    Select options for “Rimless 355mm Junior Toilet Pan” This product has multiple variants. The options may be chosen on the product page
    Compare

Description

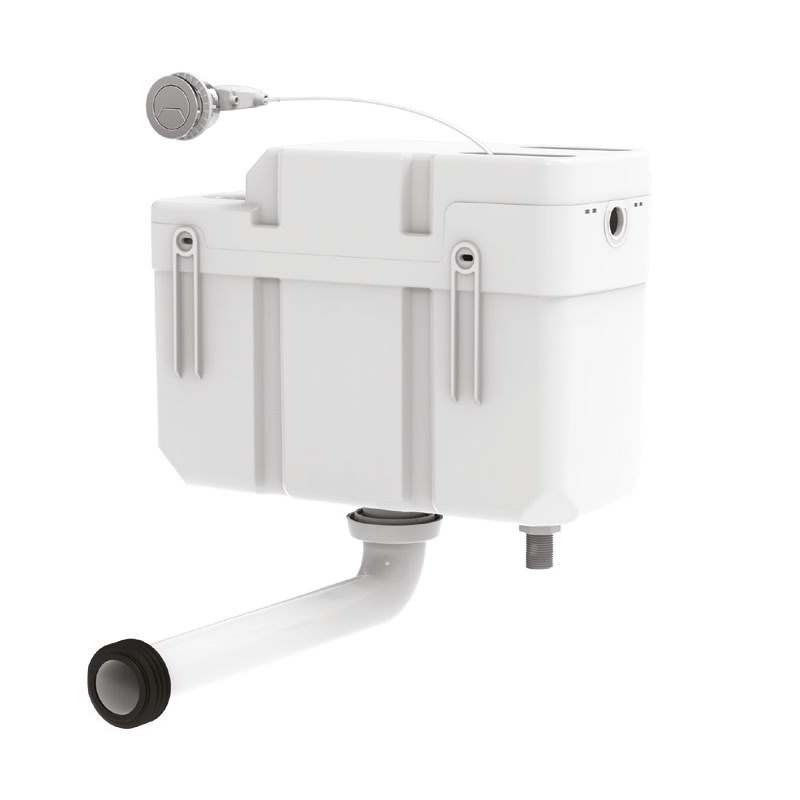

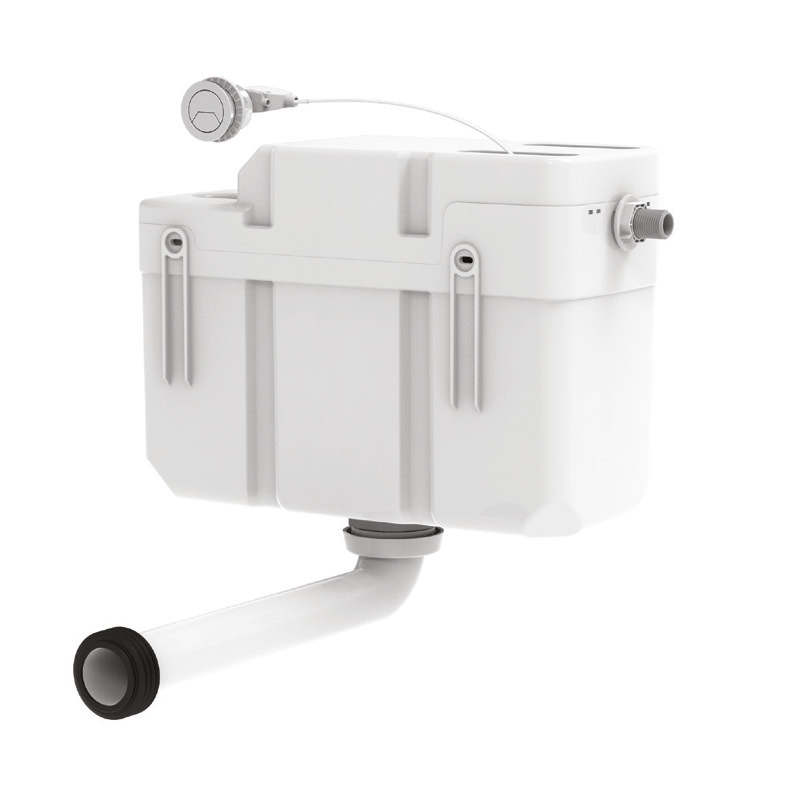

The Siamp Intra concealed cistern is designed for use with a back-to-wall toilet, to be installed behind IPS panels. Available with either Bottom Inlet (10005023) or Side Inlet (10005024).

  • 6/4 litre dual flush (can be reduced to 4/2.6 litre)
  • Insulated to prevent condensation build-up
  • WRAS approved Air Gap inlet valve
  • WRAS approved flush valve
  • 1/2-inch inlet connection
  • Front and top access for maintenance

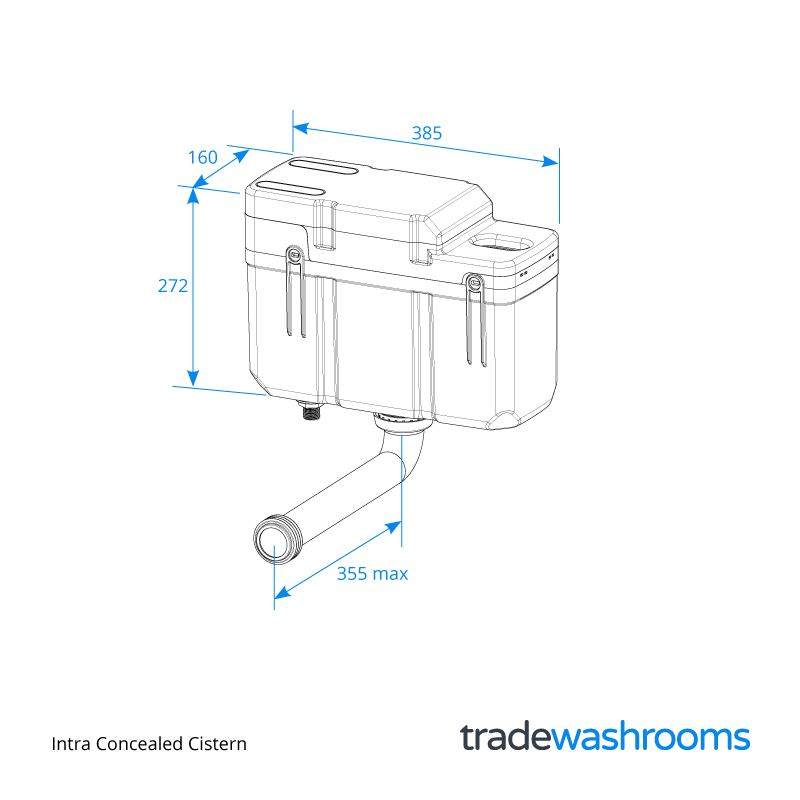

  • Supplied with a height (up to 308mm) and depth (up to 355mm) adjustable flush pipe

    •

For further information on the Unified Water Label initiative, see Water Efficiency and the Unified Water Label.


Specification

Brand

Supply

Bottom Inlet, Side Inlet
Flush

Dual Flush
Flushing Capacity (ltr)

6/4, 4/2.6
Product Width (mm)

385
Product Height (mm)

272
Product Depth (mm)

160
Certification

WRAS Approved Fittings, EN 14055-2
Warranty (years)

10

Downloads

Datasheet
PDF

Installation Guide
PDF

Certification
Link

2D CAD Block
Unavailable

3D BIM Object
Unavailable
